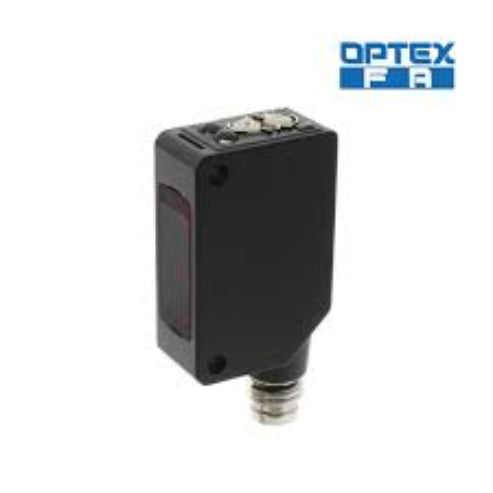

BGS-Z30CP
BGS-Z30CP
En stock
BGS, 10~300mm, PNP, M8 4-pin connector
El sensor BGS (Background Suppression) con salida PNP y conector M8 de 4 pines está diseñado para aplicaciones que requieren detección precisa en distancias medias. Con su tecnología de supresión de fondo, puede detectar objetos a distancias ajustables sin que el fondo interfiera con el proceso de detección.
Características Técnicas
-
Tipo de sensor: Fotoeléctrico con supresión de fondo (BGS)
-
Rango de detección: 10 a 300 mm (ajustable según la aplicación)
-
Tipo de salida: PNP, colector abierto
-
Tensión de alimentación: 10 ~ 30 VDC
-
Corriente máxima de salida: 100 mA
-
Frecuencia de respuesta: ≥ 500 Hz
-
Conector: M8, 4 pines
-
Pin 1: V+ (alimentación)
-
Pin 2: No conectado
-
Pin 3: 0V (tierra)
-
Pin 4: Salida PNP
-
-
Modo de conmutación: Light ON / Dark ON (configurable)
-
Indicadores LED:
-
LED verde: Alimentación
-
LED amarillo: Estado de salida activa
-
-
Protecciones:
-
Contra inversión de polaridad
-
Contra cortocircuito
-
Contra sobrecorriente
-
Condiciones Ambientales
-
Grado de protección: IP67 (protección contra polvo y agua)
-
Temperatura de funcionamiento: -10 °C a +55 °C
-
Material del cuerpo: Plástico o metálico (dependiendo del modelo)
-
Montaje: Fijación mediante tornillos o soporte adicional
Aplicaciones Comunes
-
Detección precisa de objetos en líneas de ensamblaje o clasificación
-
Control de presencia en sistemas automatizados
-
Verificación de posición en procesos industriales
-
Detección en entornos con condiciones difíciles (polvo, humedad, etc.)
Certificaciones
-
CE
-
RoHS
-
EMC (compatibilidad electromagnética)
